How can I display a cleavage arrow in a feature?
Specify an Insertion Point
The following procedure can be performed when you first create a feature, but this lesson assumes that the feature already exists.

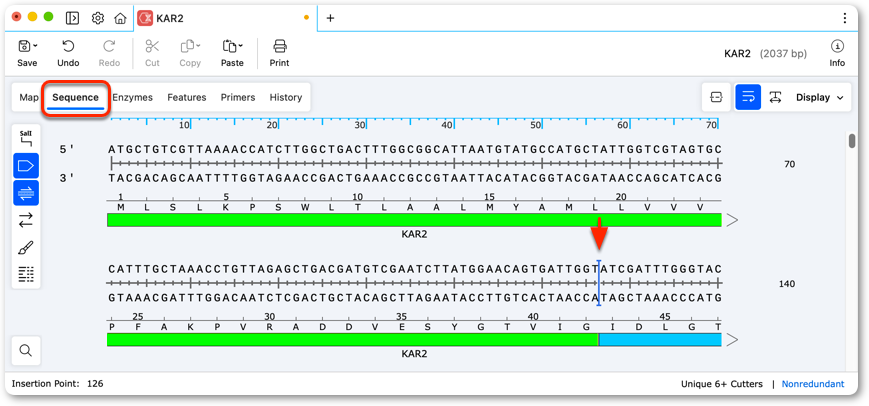

To specify the cleavage arrow location, click within the DNA sequence in Sequence view to place an insertion point cursor. In this example, the cleavage arrow will be at the boundary between two feature segments, but a cleavage arrow can be placed anywhere in a feature.
Add a Cleavage Arrow

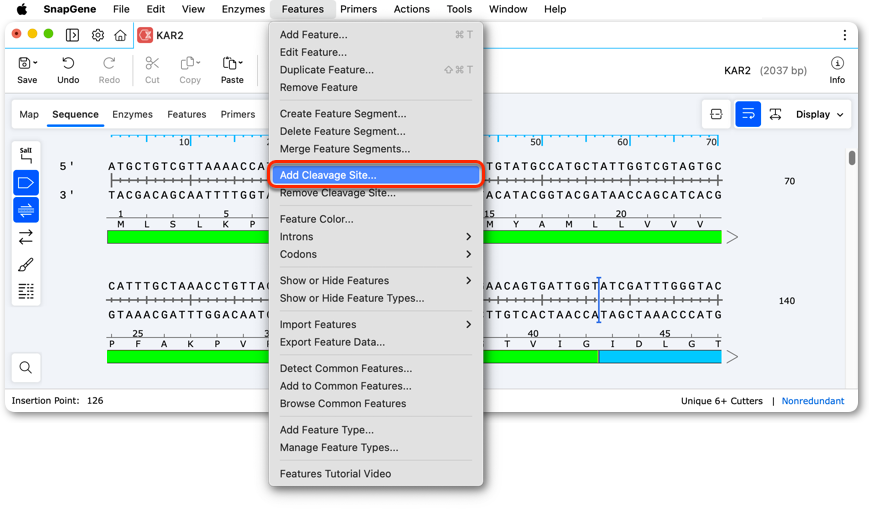

To add a cleavage arrow, click Features → Add Cleavage Site... .

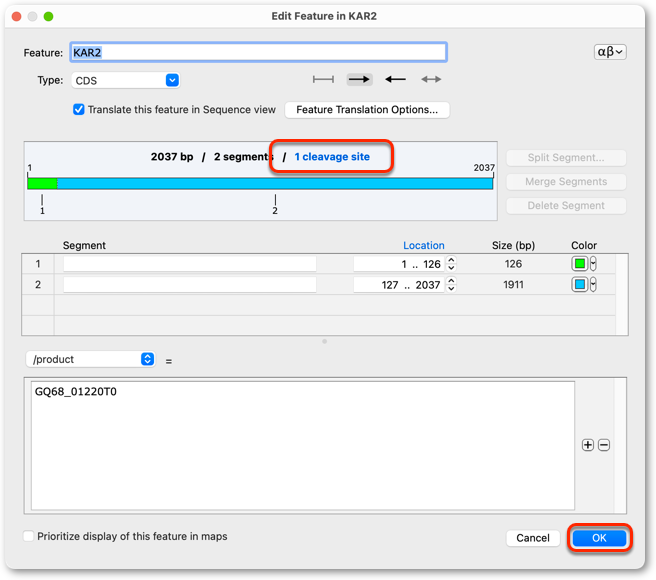

The Edit feature dialog will open, the new cleavage site will be noted.
Click OK to add the cleavage site.
View the Updated Feature

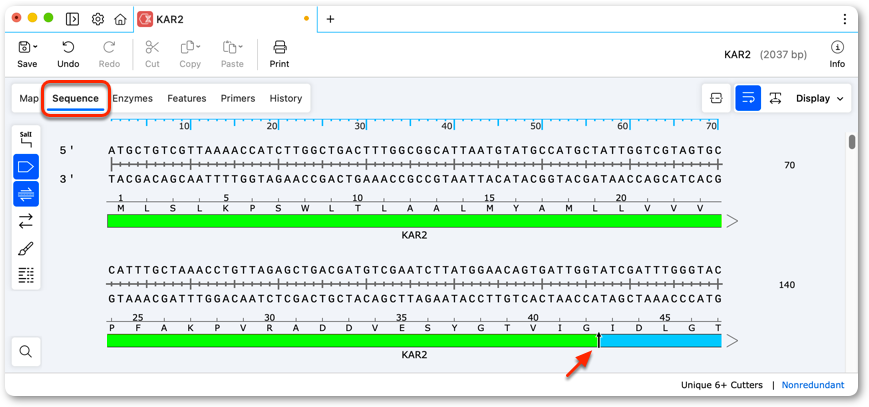

Click OK to return to Sequence view. The cleavage arrow will be displayed as a vertical upward pointing arrow.
Remove a Cleavage Arrow
To remove a cleavage arrow, double-click the feature to open the Edit Feature dialog.

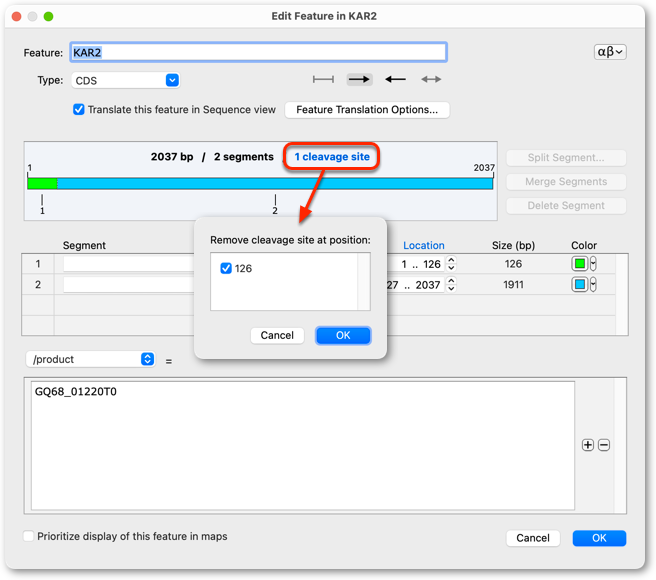

Click the blue control text above the feature diagram to list the cleavage arrows that can be removed.
Click OK to remove cleavage arrows at the selected positions.
Alternatively, select a feature with a cleavage site then click Features → Remove Cleavage Site... .
