View Enzyme Tooltips

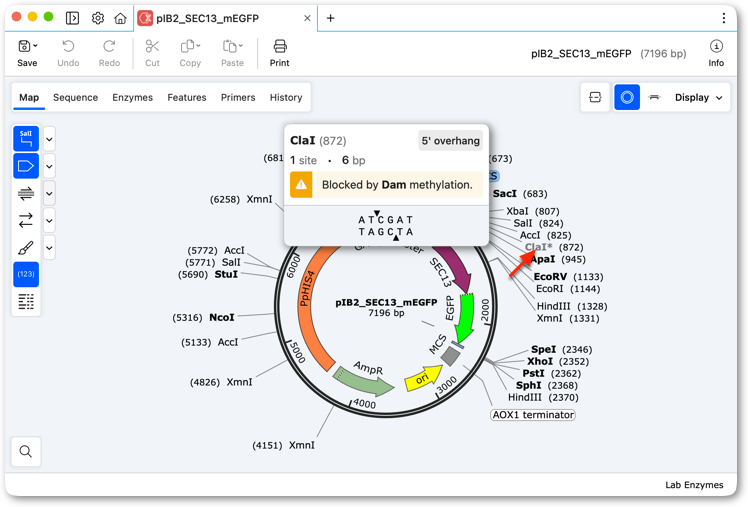

Hover over a Enzyme site name in Map, Sequence or Enzymes view to see a tooltip summarising key information about the Enzyme site.

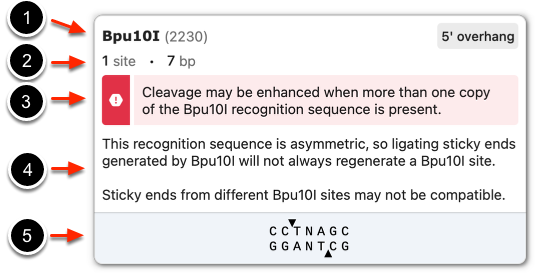

The tooltip includes:

1. Site name, (position) and type or overhang created by digestion.
2. Number of cut sites on the sequence, and recognition site length.
3. For relevant enzymes, alerts and warnings.
4. For relevant enzymes, important details specific to the enzyme.
5. A depiction of the site, with strand cut positions marked by triangles.
