In Enzymes view, the restriction sites can be displayed as lines or numbers. The chosen enzyme set can also be searched or edited.
Display Restriction Sites as Numbers

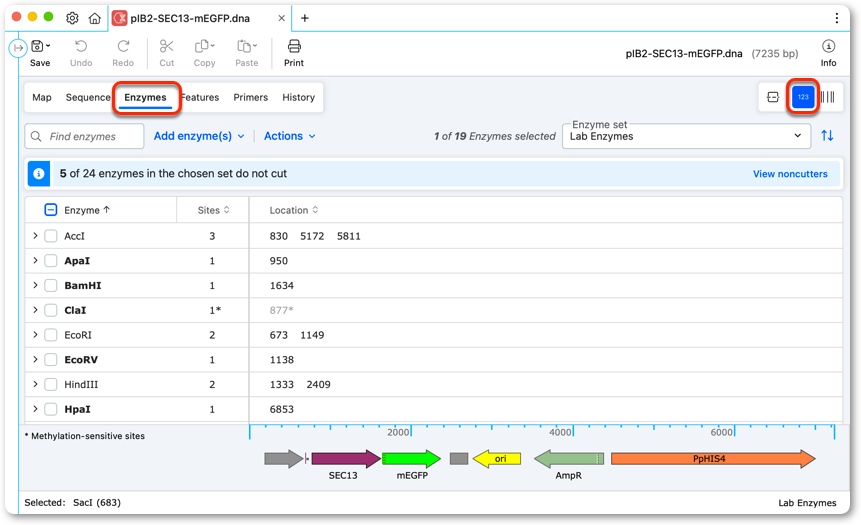

To display restriction sites as numbers, switch toEnzymes view, then click the Numbers button. Cut position coordinates for each enzyme site are listed.
Display Restriction Sites as Lines

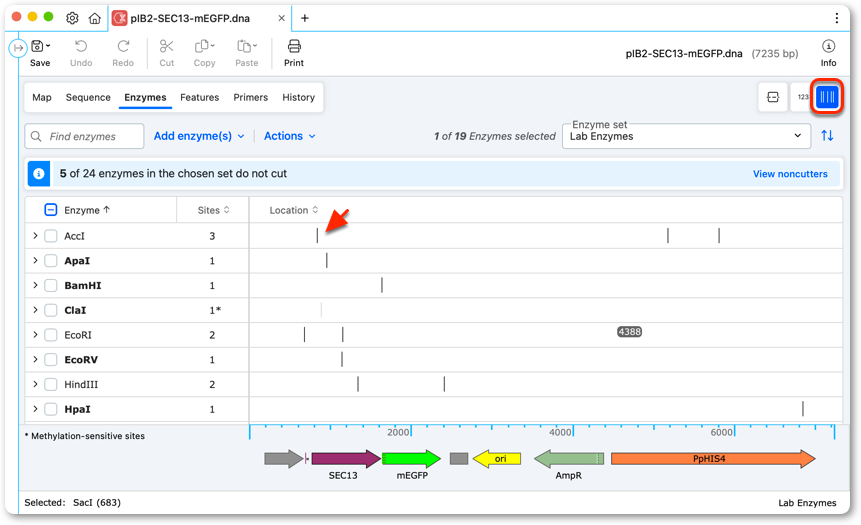

To display restriction sites as lines, click the Lines button. Cut positions for each site are displayed as vertical lines.
Search and Filter based on Enzyme Name

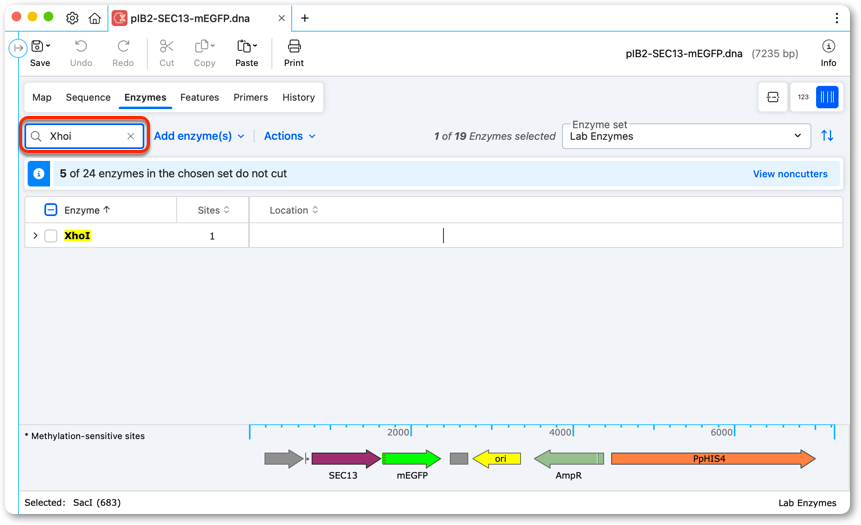

To filter the list, type the enzyme's name in the search field.
Add an Enzyme to the Set

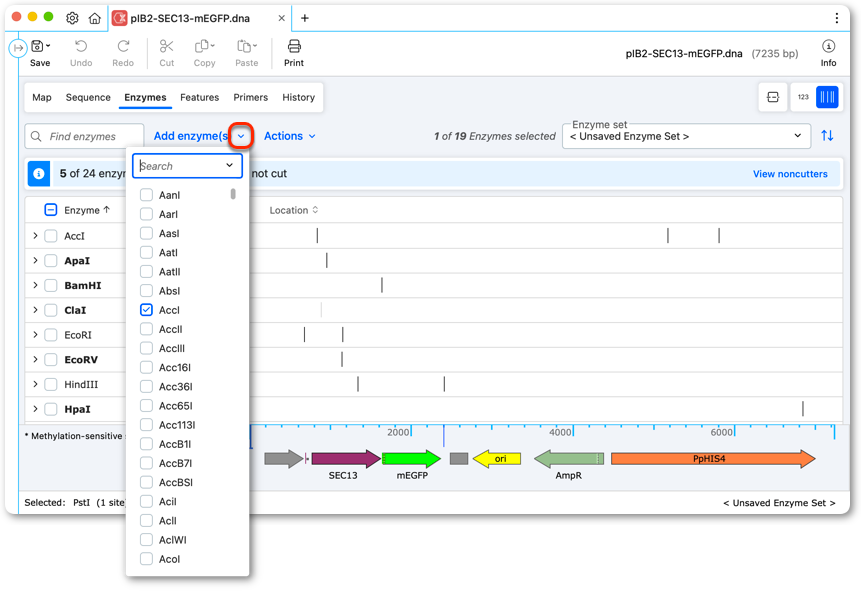

Click the Add Enzymes dropdown to choose to add further enzymes to the sequence. Check the box to add an enzyme. Use the "Search fields" to find specific enzymes in the list.
