How do I add an intermolecular (interchain) bond Feature to a protein sequence?
SnapGene allows the addition of interchain bond Features to a protein sequence. Bond types can be disulfide, thioether, thiolester, x-link or other. In this lesson we show how to add an interchain disulfide bond.
Open a Protein Sequence
Open a protein sequence. In this example we will add an interchain disulfide bond.

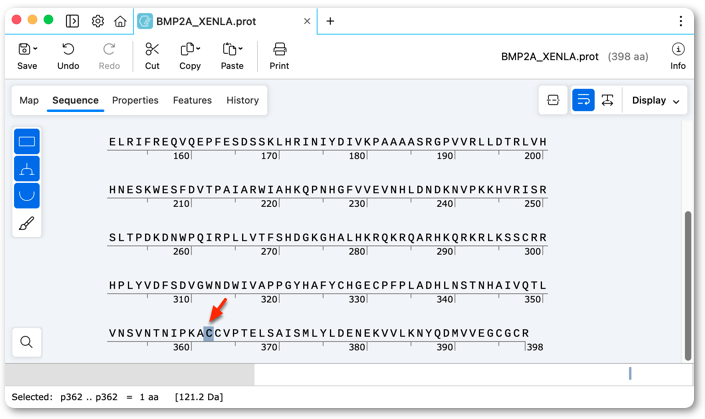

Click and drag to select the cysteine residue involved in the interchain disulfide bond.
Add a Bond Feature

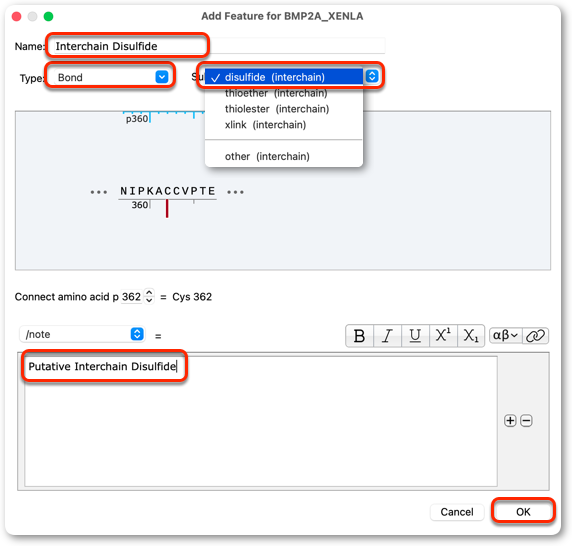

Click Features → Add Feature.
Enter a name for the Feature.
Set the Type: to "Bond" and set the Subtype.
Optional: Add information to the /note qualifier.
Click OK to add the bond.
View the Bond Feature

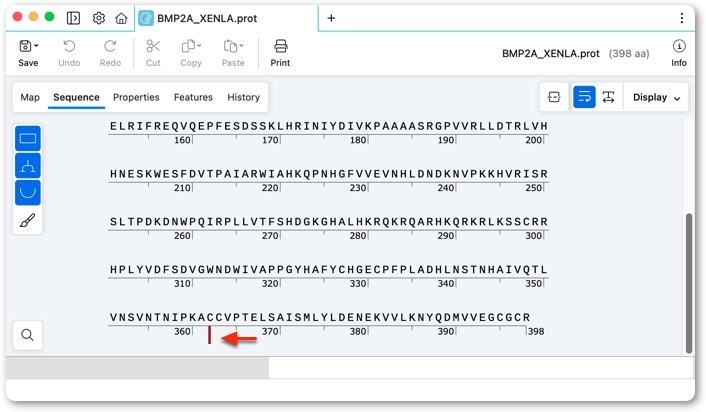

The bond Feature displays in Map view and Sequence view as a vertical line.
In Sequence view, double click on the bond line if you want to edit the bond Feature
