How do I choose a MW marker for an agarose gel simulation?

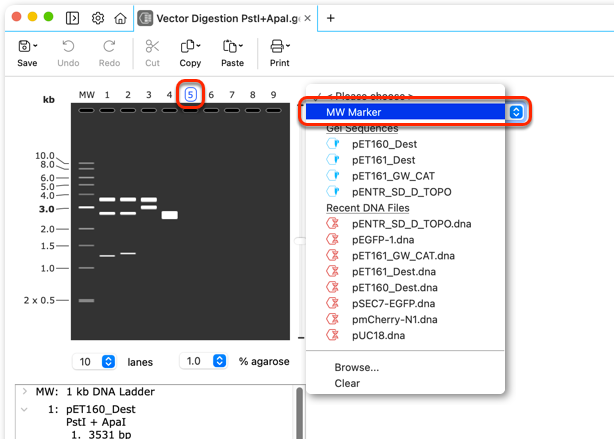

Select the MW Marker Lane

To select the MW Marker lane, click "1" above the gel.

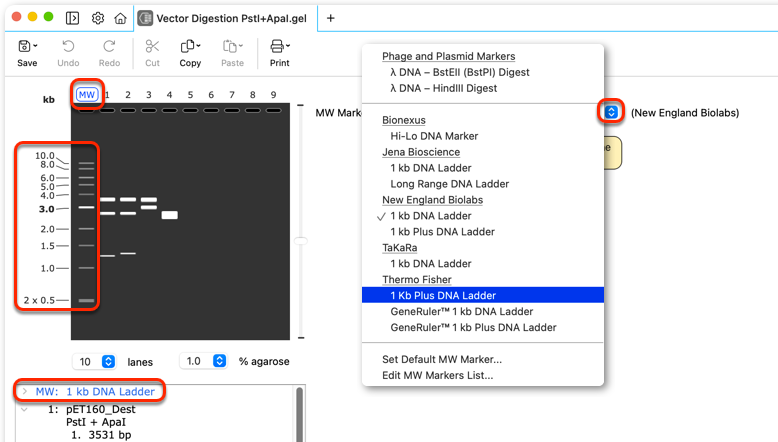

Choose the Ladder

Expand the MW Marker menu, then choose the desired ladder.
If we have overlooked a MW marker that you use, please contact us and we will add it to the list.
View the Ladder

The selected marker will be shown in the MW lane of the agarose gel simulation.
Add Another Ladder

To add another ladder, click the lane number, expand the Lane [N] menu, choose MW Marker, then specify the desired ladder.
