How can I add a primer to a sequence?
To see a video about creating primers and PCR , see our "Getting Started" lesson, Primers & PCR.
To learn how to create a primer in SnapGene 7.0 or later see Create a Primer (SnapGene 7.0 and later).
Option 1: Paste a Primer Sequence
To create a primer, first open a target sequence.
Click Primers → Add Primer... , then copy and paste a sequence.
Option 2: Create a Primer Based on a Target Sequence

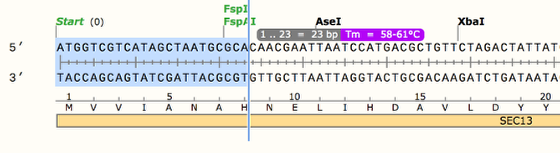

Alternatively, you can begin by selecting the desired binding site on your target sequence. If you click the mouse and drag to select, the melting temperature of a corresponding primer will be shown. To add the primer at the selected location, go to Primers → Add Primer.
Specify the Selected Strand
If the primer will be made from a selected binding site, specify whether the Top Strand or Bottom Strand of the selection should be used.
Name the Primer
If desired, type the primer name.
Edit the Description
If desired, type a description. The Description tab is open by default.
Modify the Primer (optional)
If desired, modify the primer to add a 5’ extension or introduce a mutation. There are two options.
One option is to manually edit the primer sequence in the text box.

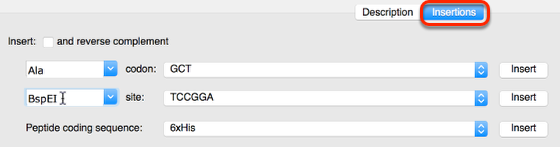

The other option is to click in the primer sequence at the location of the change, and then click the Insertions tab. Use the dialog controls to add a desired codon, restriction site, or peptide coding sequence.
View the Binding Sites and Melting Temperature
The number of binding sites and the calculated melting temperature is shown at the bottom of the window. To see a summary of the melting temperature calculation methods, click the blue text at the lower right corner of the dialog.
View the Primer
Click Add Primer to Template to see the new primer.
