How do I simulate Overlap Extension PCR?
In this example we will use Overlap extension PCR to create an in-frame fusion between the SEC7 CDS and eGFP CDS.
Open the Overlap Extension PCR Dialog

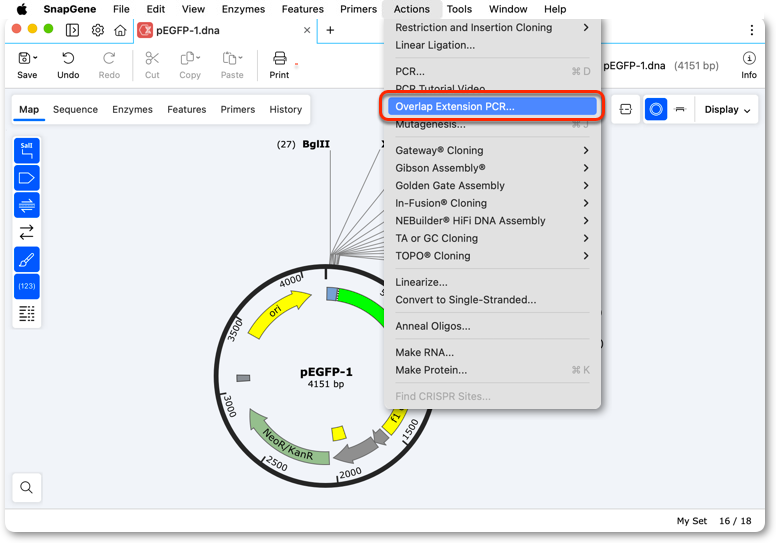

To open the Overlap Extension dialog, click menu Actions → Overlap Extension PCR....
If you have a SnapGene DNA sequence file open then it will be loaded as the first fragment of the Overlap Extension PCR.
Specify the Number of Fragments for Overlap Extension
By default the Overlap Extension PCR tool starts with two fragments

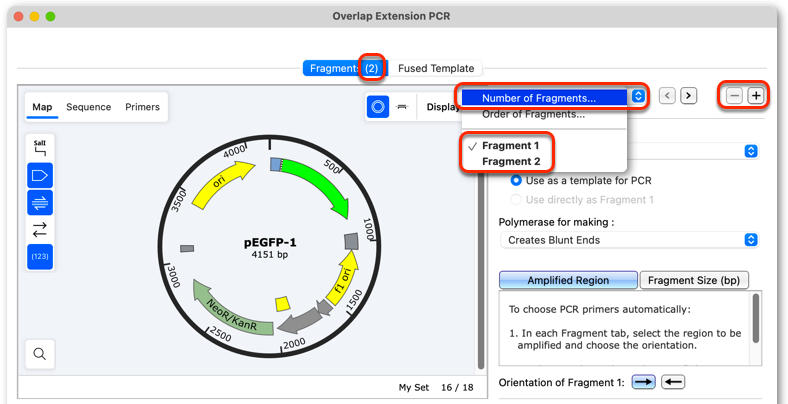

To set the number of fragments for Overlap Extension PCR, use the "+" or "–" buttons. Alternatively, for larger numbers of fragments use the dropdown to set the Number of fragments.
The number of expected fragments are displayed in the Fragments tab, or listed in the "Fragments" dropdown menu.
Specify the Fragment Source Sequences
There are a number of ways to specify the fragments, you can use any combination of the following methods:
Manual Selection

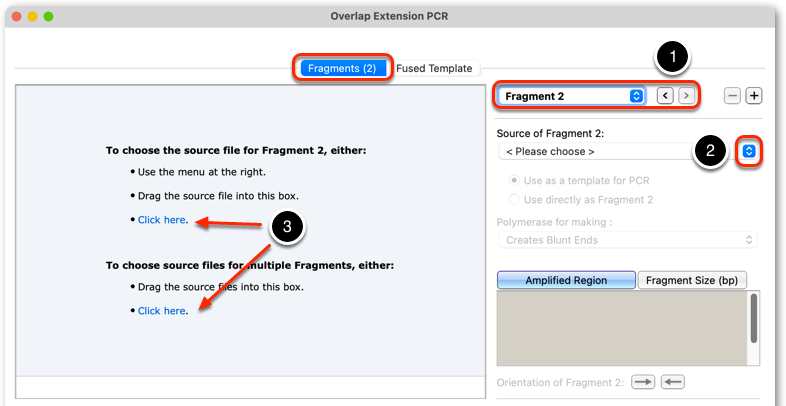

- First, set the Fragment via the "Fragments" dropdown menu, or use the < > buttons to switch between fragments.
- Click the dropdown to choose the "Source" of each fragment, or
- Click the "Click here" link to browse and set the "Source" of the fragment/s.
Drag and Drop

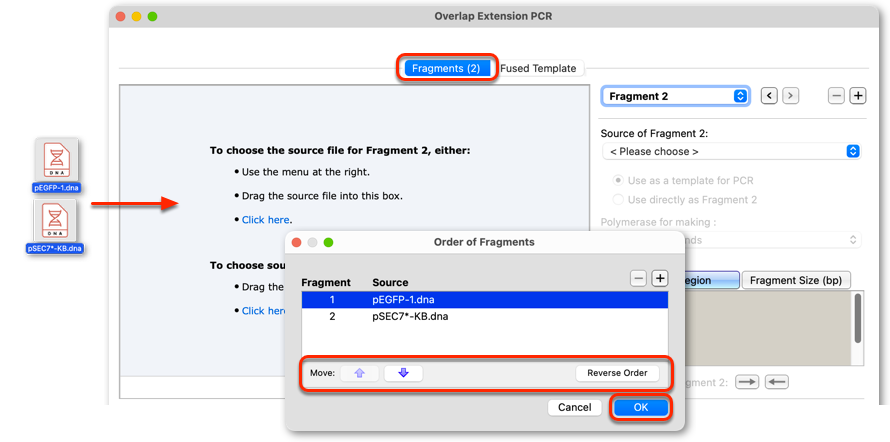

Drag and drop one or more source files into the Fragments panel.
If more than one sequence is added simultaneously then the "Order of Fragment" Dialog will automatically open. If required, use the "Reverse Fragment Order" button (with all or no sequences selected), or select sequences in the list and use the "Arrow" buttons to change the insert order.
Once the sequence order is set, click OK to continue.
Cut and Paste

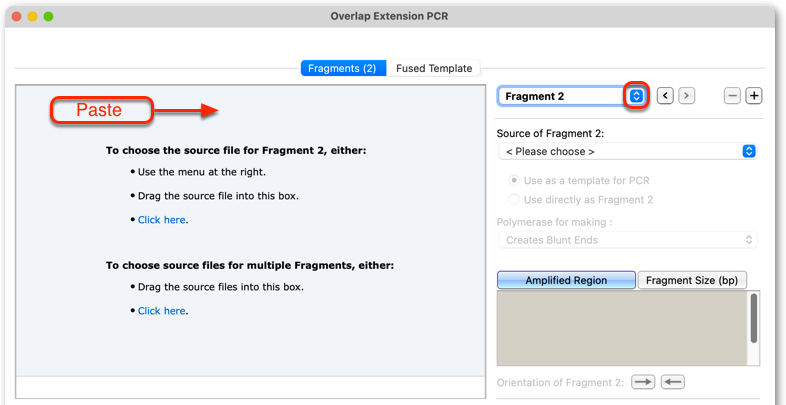

First, set the Fragment via the "Fragments" dropdown menu, then copy a sequence from any compatible source file and paste to import it as the fragment source.
Set the Source for Fragment 1

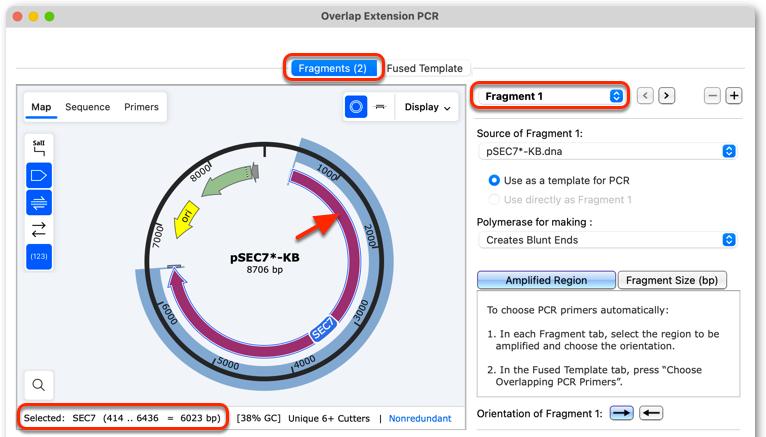

In the "Fragments" tab, click the dropdown to show the Fragment 1 source sequence.
In Map view, click on a feature (if defined) to select the Fragment 1 region for the fusion. Alternatively, switch to Sequence view to manually select the fragment region.
Set the Source for Fragment 2

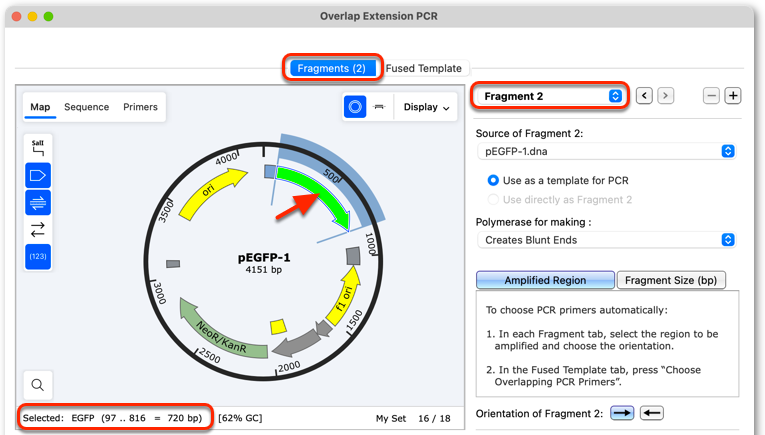

In the "Fragments" tab, click the dropdown to show the Fragment 2 source sequence.
In Map view, click on a feature (if defined) to select the Fragment 2 region for the fusion. Alternatively, switch to Sequence view to manually select the fragment region.
Design Primers to Generate the Fusion

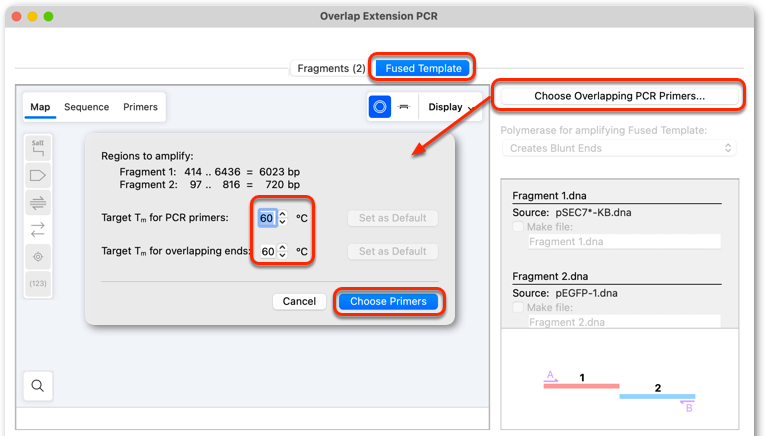

Switch to the "Fused Template" tab and click Choose Overlapping Primers....
Set the desired "Target Tm" for the "PCR primers" for each fragment, and for the "overlapping ends".
Click Choose Primers and primers will be designed to amplify each fragment.
Name the Primers
Switch to Fragment View, use the "Fragment" dropdown to select each fragment in turn, and enter appropriate names for the newly designed primers.
Create the Overlap Extension PCR Product

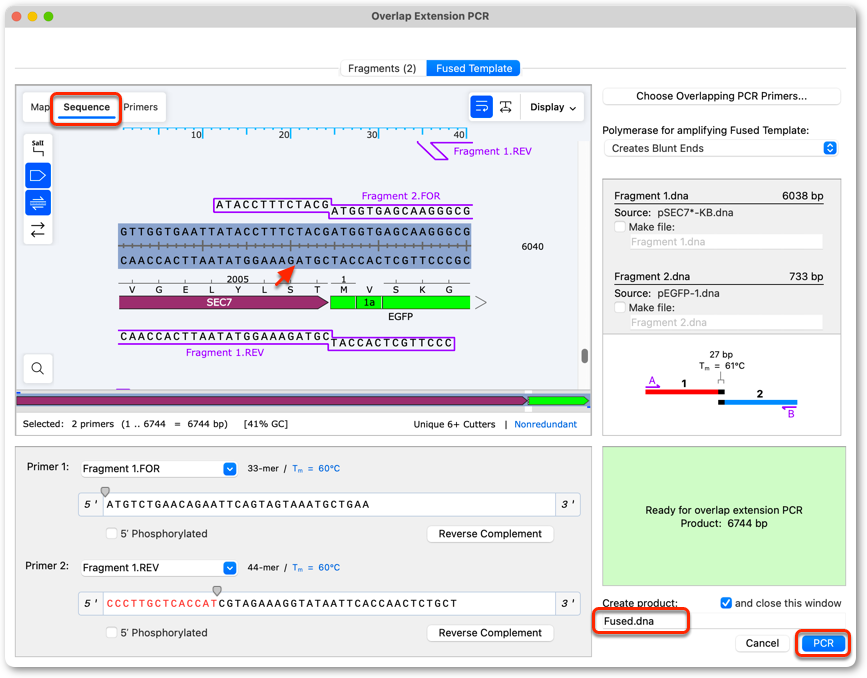

Confirm the fragment arrangement and fusion are correct, switch to Sequence view if required and scroll to the location of the overlap to check the fusion at the nucleotide level.
Enter an appropriate name for the overlap extension PCR product.
Click PCR to create the fusion product.
Order Your Primers
Option 1: Export the Primers to a Text File

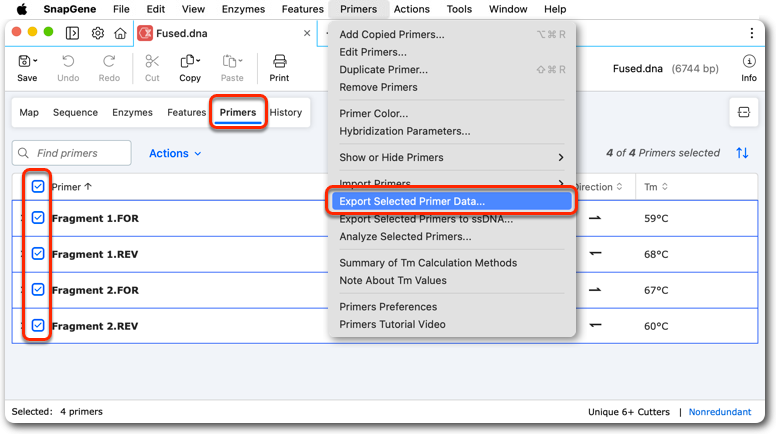

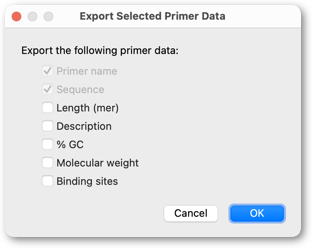

Viewing the new product file, switch to Primers view, select the new primers in the table, then click menu Primers → Export Primer Data.

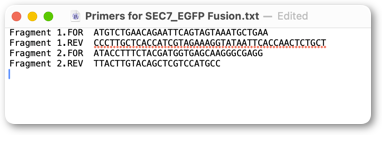

At a minimum Primer names and nucleotide Sequence will be exported to a delimited text file.
Use the tab-delimited text file to order the primers from an oligonucleotide synthesis service provider.
Option 2: Copy the Primers to the Clipboard

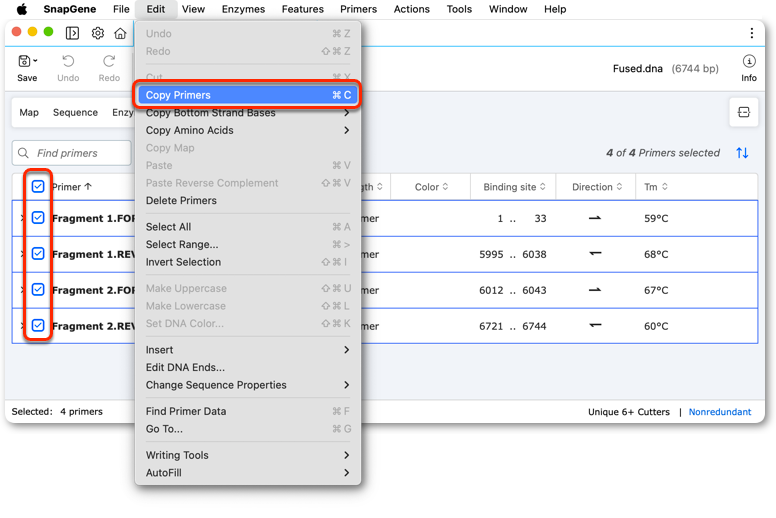

Viewing the new product file, switch to Primers view, select the new primers in the table, then click menu Edit → Copy Primers.
The primer names and sequences will be copied as tab-delimited text, one line per primer, ready for pasting into an oligonucleotide synthesis service provider web page, or pasting into a compatible document.
