How can I ligate two or more linear fragments?
Open the Linear Ligation Dialog

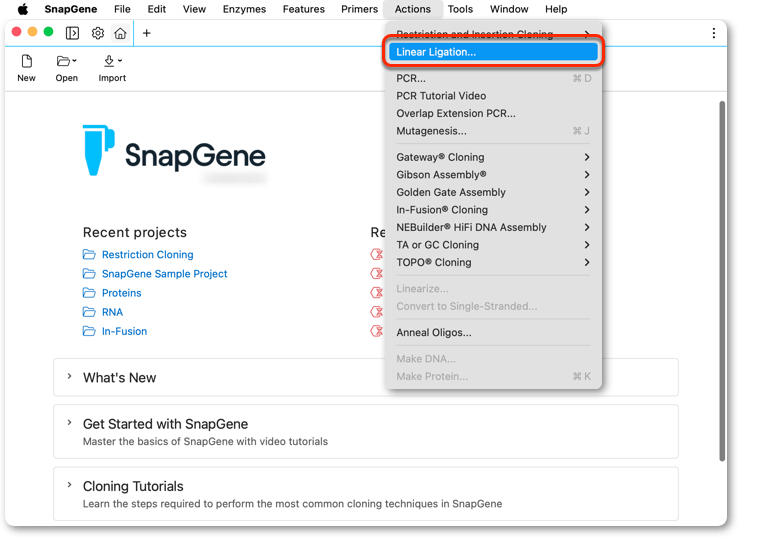

To open the Linear Ligation dialog, click Actions → Linear Ligation.
Specify the Number of Fragments for Ligation
By default the Linear Ligation tool starts with two fragments.

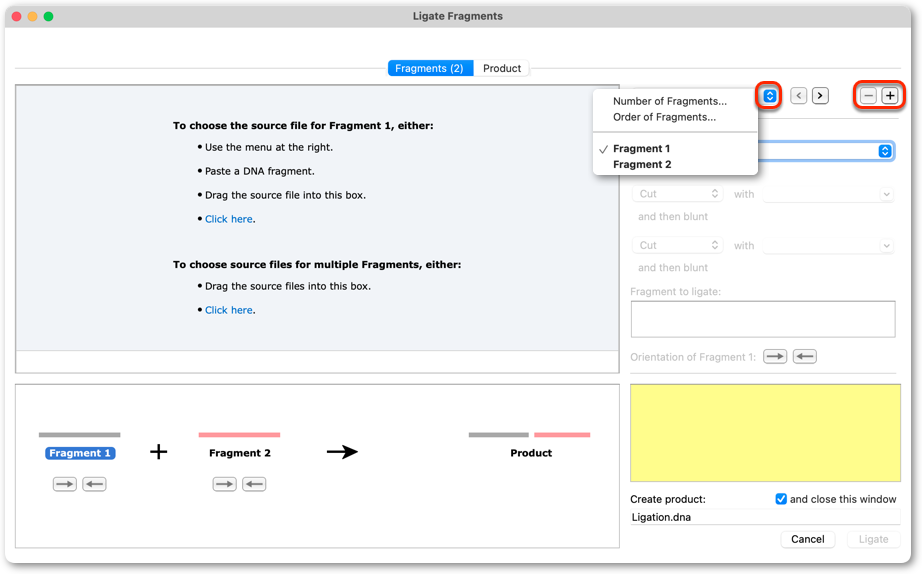

To set the number of fragments for ligation, click the "+" or "–" buttons. The number of expected fragments are displayed in the Fragments tab, and listed in the "Fragments" dropdown menu.

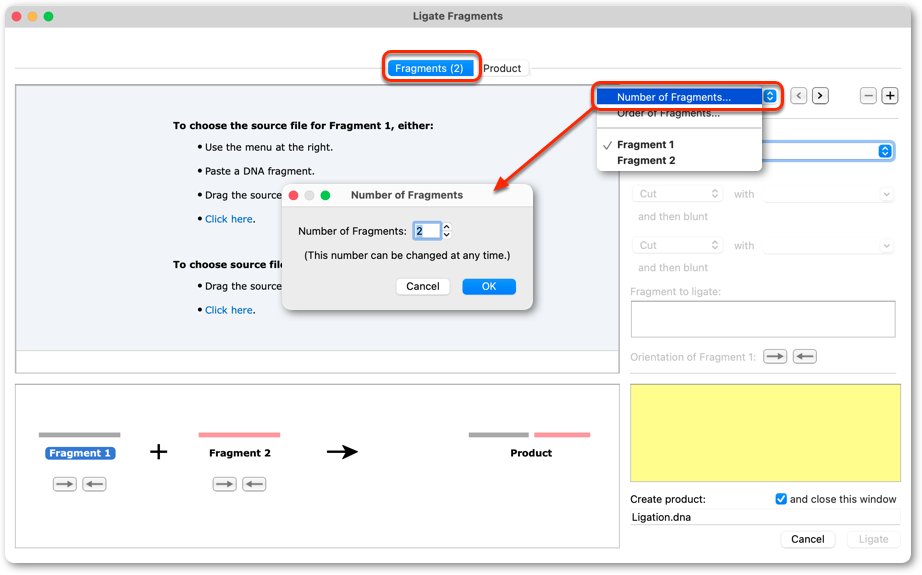

For larger numbers of fragments, click the drop down and choose "Number of Fragments", in the dialog, enter the number of fragments then click OK.
Specify the Fragment Source Sequences
There are a number of ways to specify the fragments, you can use any combination of the following methods:
Manual Selection
- First, set the Fragment via the "Fragments" dropdown menu.
- Click the dropdown to choose the "Source" of the fragment", or
- Click the link to Browse and set the "Source" of the fragment.
Drag and Drop

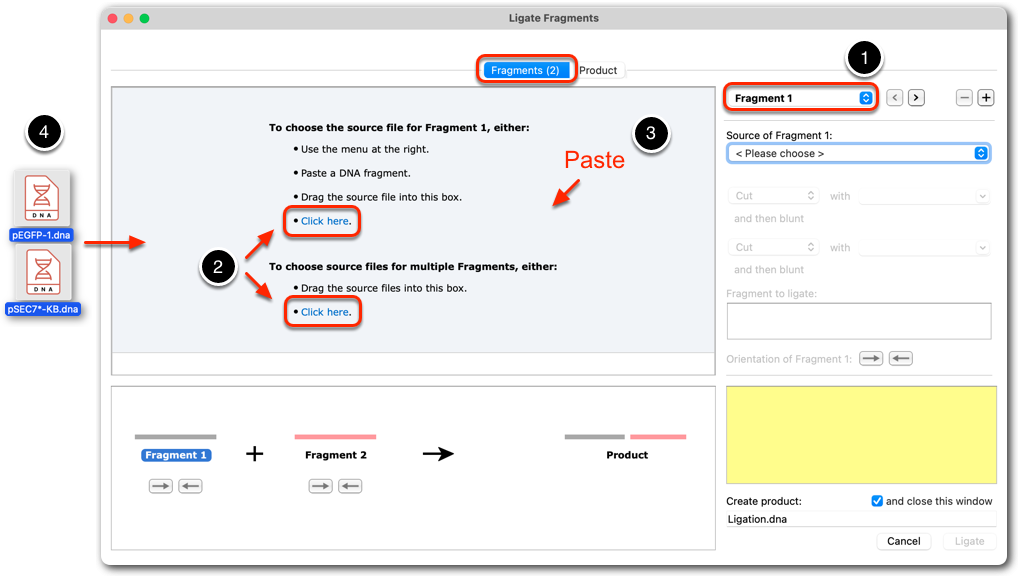

Drag and drop one or more source files into the Fragments panel.

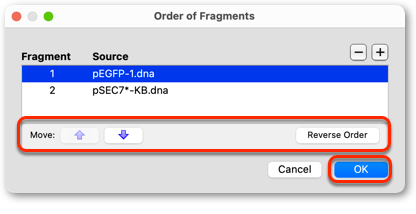

If more than one sequence is added simultaneously then the "Order of Fragment" Dialog will automatically open. If required, use the "Reverse Fragment Order" button (with all or no sequences selected), or select sequences in the list and use the "Arrow" buttons to change the insert order.
Once the sequence order is set, click OK to continue.
Cut and Paste
First, set the Fragment via the "Fragments" dropdown menu, then copy a sequence from any compatible source file and paste to import it as the fragment source.
Specify the First Fragment
To specify the source of the first fragment, select "Fragment 1" via the "Fragments" dropdown menu.

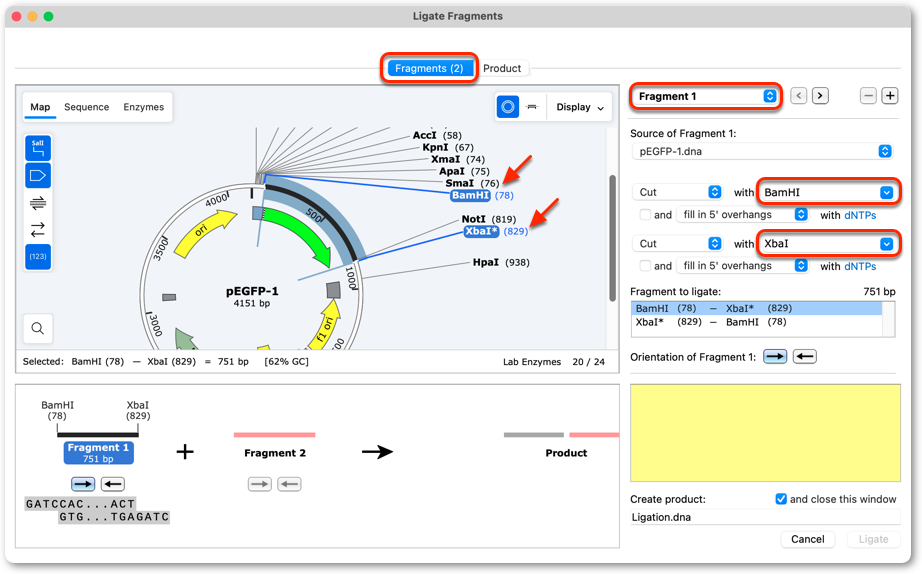

To specify the fragment, click on the first enzyme site and then either, Shift-click on the second enzyme site, or drag to the second enzyme site.
Alternatively, type the enzyme names into the boxes at the upper right.
Review insert blunting (fill in or remove overhangs), enzyme selection, fragment selection, and orientation.
Blunting (or polishing) simulates enzymatic backfilling or removal of single-stranded overhangs - see Blunting.
Specify the Second Fragment
To specify the source of the second insert, select "Fragment 2" via the "Fragment" dropdown menu.
As with the first fragment, to specify the insert click on the first enzyme site and then either, Shift-click on the second enzyme site, or drag to the second enzyme site. Alternatively, type the enzyme names into the boxes at the upper right.
Review insert blunting (fill in or remove overhangs), enzyme selection, fragment selection, and orientation.
Specify Any Additional Fragments
If necessary, repeat the steps described above to specify additional source files and fragments.
Make the Ends Compatible

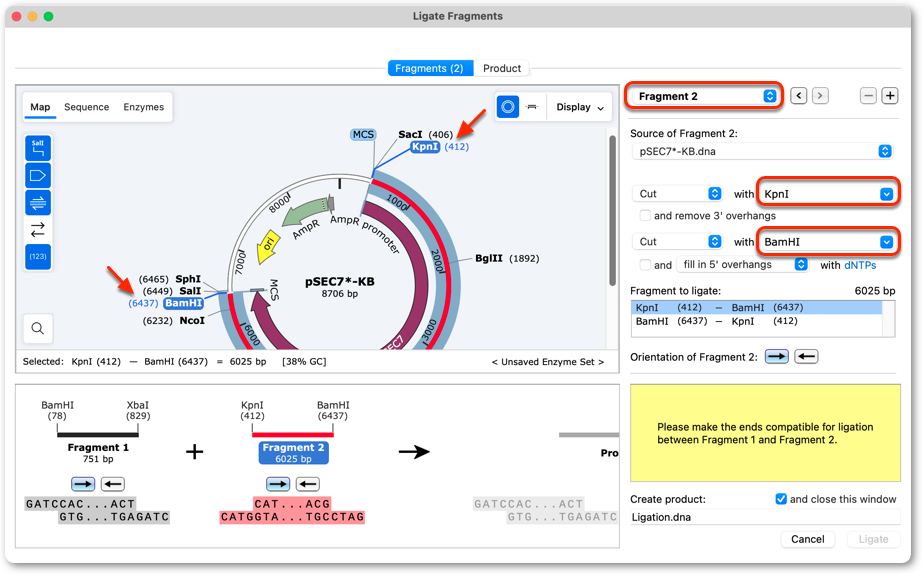

If ligation is not possible, the box at the lower right will remain yellow and will explain what steps must be taken to proceed. Correct the problem by some combination of reordering fragments, flipping fragments, or blunting ends, to the ends compatible for ligation.
In the illustrated example, the yellow box indicates that the ends are not compatible for ligation. This can be corrected by reordering the fragments.
Preview the Product

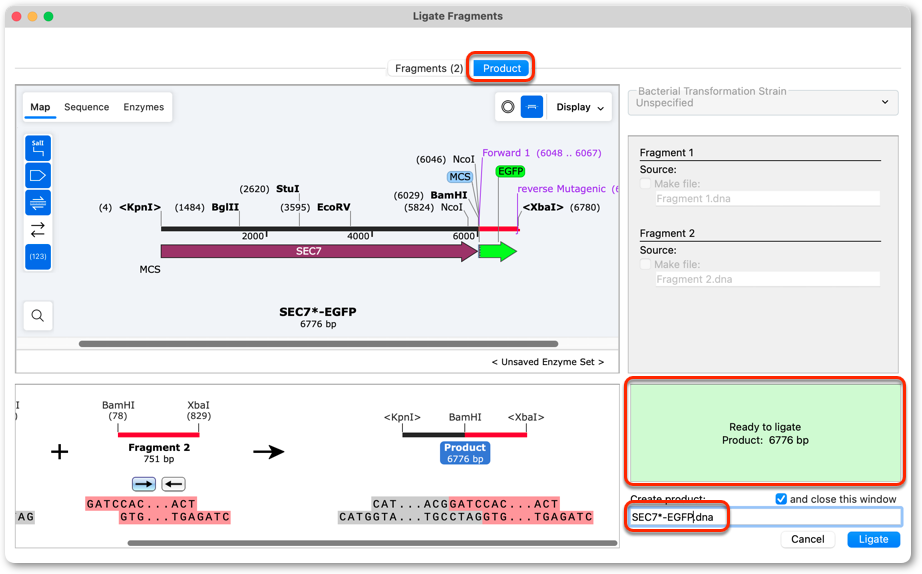

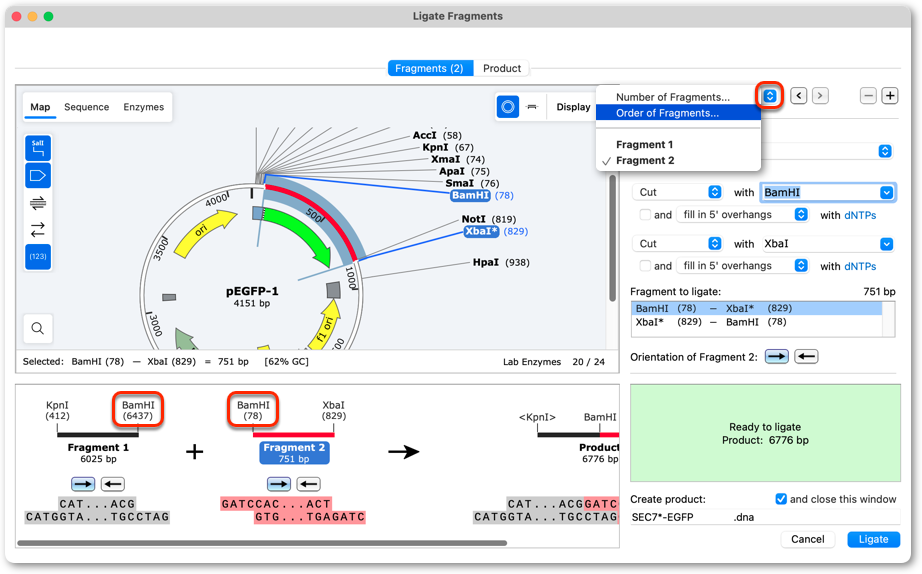

To preview the product, click the Product tab. The box will turn green when you are ready to ligate.
Name the Product
Type the name of the product, then click Ligate.
View the Product History Colors

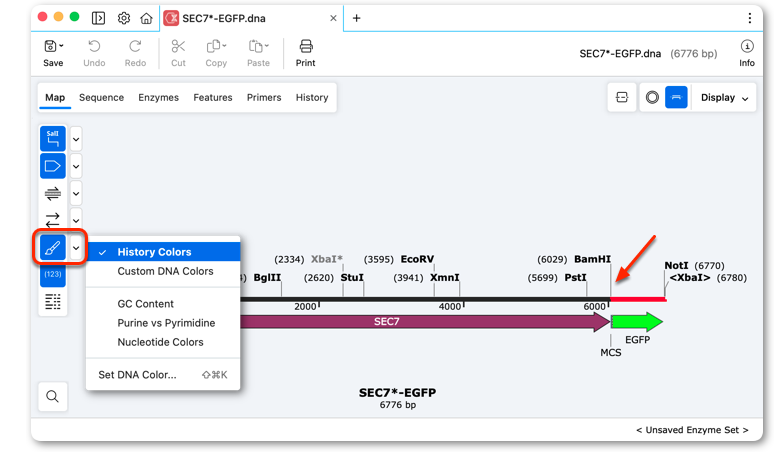

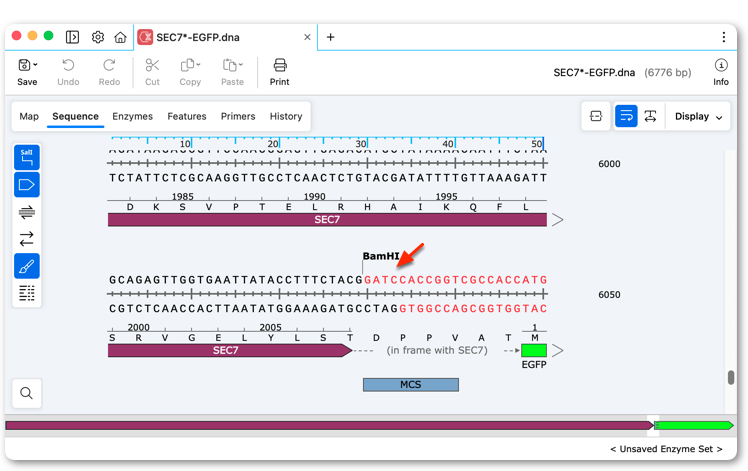

To turn on the product history colors in Map and Sequence views, click the "Show colors" button in the side toolbar. Alternating black, red and blue colors represent multiple ligated fragments.
In Sequence view, the history colors illustrate more precisely where the fragments were ligated.

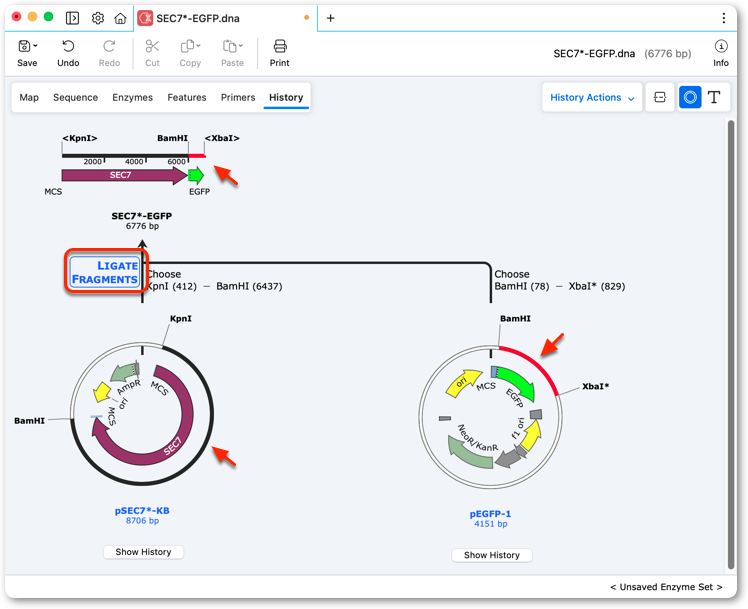

To illustrate in History view where the ligations occurred, click the "Ligate Fragments" operation name.
